Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper | Insulation: | Solid PE |
|---|---|---|---|
| Shield: | CCA Braiding | Jacket: | PVC |
| Power Wire: | Copper Clad Aluminum | Color: | Black, White |
| Package: | 300M, 500M / Wooden Spool, Carton | ||
| Highlight: | digital coaxial cable,hd coaxial cable |
||

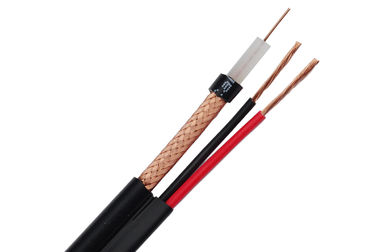

Powax Cable RG59 22AWG Copper with 1.00mm2 CCA Power Wire for CCTV Camera
Quick Detail:
Description:
Powax Cable RG59 22AWG Bare Copper with 1.00mm2 CCA Power Wire for CCTV Camera
RG59 Powax Cable is a specific type of CCTV coaxial cable , RG59 Powax Cable (Produced by ZION)
is perfect for any type of surveillance camera installation. RG59 Powax Cable has a characteristic impedance of 75 ohms. ZION using best raw material and best worker to produce RG59 Powax Cable to meet high performance in practical application. RG59 Powax Cable is packed in 300M or 500M /Wooden Spool, and will be layed on pallet to protect the spool and easier carry.Because of good managing methods, ZION’S price of RG59 Powax Cable is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital Video
■ Monitor/VDT Display
■ Security Camera
Specifications:
|
Powax Cable RG59 22AWG Bare Copper with 1.00mm2 CCA Power Wire for CCTV Camera
|
||
| Construction Parameters: | ||
| Inner Conductor | 0.64mm/22AWG | Bare Copper |
| Dielectric | 3.7±0.05mm | Solid PE |
| Shield | Nom. 4.15mm | |
| Strand | 0.12mm/34AWG | Copper Clad Aluminum |
| % Coverage | 95 nom. | |
| Jacket | 6.00±0.1mm | High Quality PVC (Color by your choise) |
| Power Wire Conductor | 34×0.20mm | Copper Clad Aluminum |
| Power wire Diameter of insulation | 2.1mm | High Quality PVC |
| Power Wire Color Code | Red,Black | |
| Jacket | 5.3±0.1mm | High Quality PVC (Color by your choise) |
| * 1 Pair of wire twisted | ||
| Electrical Characteristics: | ||
| Capacitance | 67±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 54 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 22.5dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 65℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100m) |
|
| 5 | 2.68 | |
| 55 | 9.56 | |
| 187 | 18.24 | |
| 211 | 19.51 | |
| 350 | 25.64 | |
| 450 | 29.39 | |
| 550 | 32.76 | |
| 750 | 38.92 | |
| 865 | 42.30 | |
| 1000 | 46.17 | |
| Order Informations: | ||
| Marking |
ZION RG59 Powax Cable + 2x1.00mm2 CCA Power Wire CE RoHS XXXM MMDDYYYY |
|

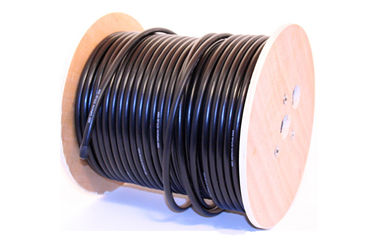

| Package | 300M or 500M/Wooden Spool,Carton | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
